Bare Die/CSP Trays

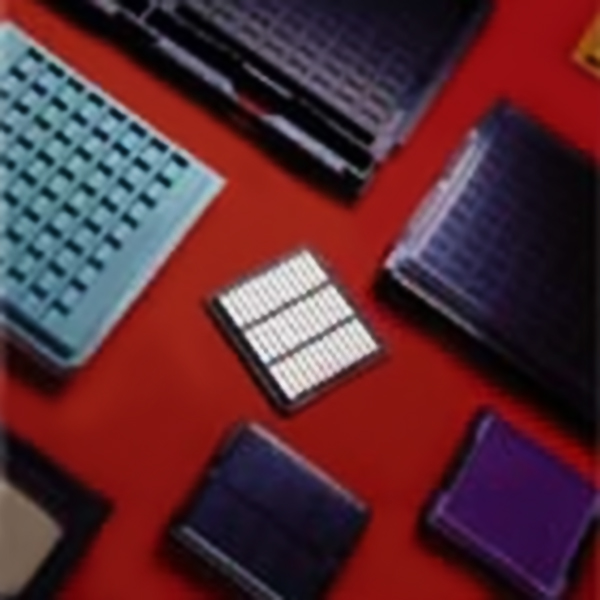

Entegris offers the world's most comprehensive IC Packaging delivery systems for bare die, CSP, opto electronics and other microelectronic devices.

• Tray Wizard. Search from our database of over 10,000 different and existing H20 series (2" square) and H44 series (4" square) trays to fit your specific application.
• Accessories. Select from a variety of complementary accessory items such as covers, clips, inserts and storage boxes that make shipping your die easy and convenient.
• Tray Material Technical Data. View technical data for materials used in our bare die/CSP trays.
• i-Tray Designer. Interactive, on-line design tool for your custom tray application. A product drawing and quotation are generated on-line and can be purchased on-line or emailed to your purchasing group for ordering.
• Custom Tray Request. Electronic form for requesting your custom tray needs. Request is submitted to factory for quote.

H20 Series (2˝) Products

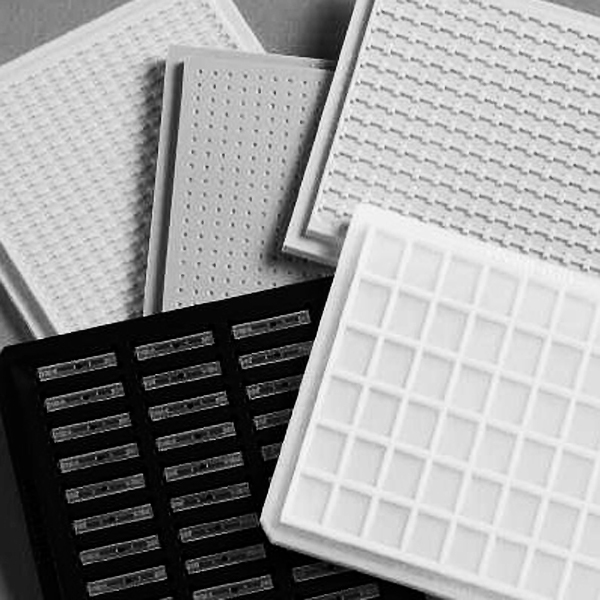

Entegris offers a wide selection of H20 series 2˝ square trays, covers and accessories to meet your changing needs. H20 series trays are available in various pocket sizes and depths, with or without wash holes and tweezers slots.

Trays

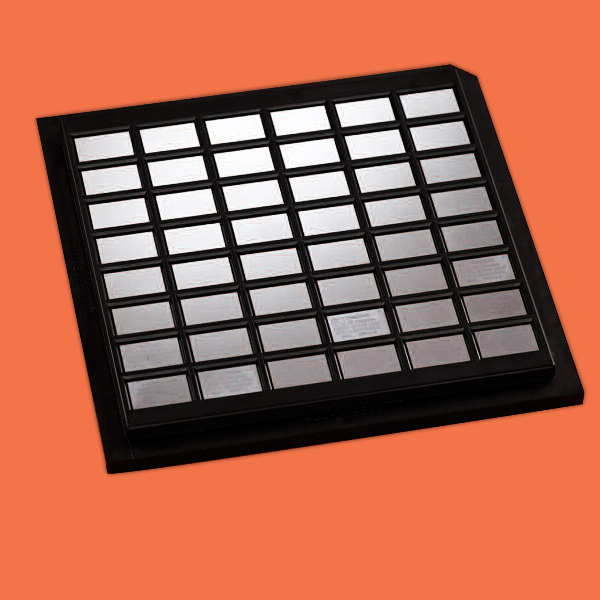

Entegris’ H20 series products offer proven reliability for handling bare die, including:

• Known Good Die (KGD)
• Wafer Scale Packaging (WSP)
• Chip Scale Packaging (CSP)
• Flip chip
• Bump die
• Opto electronics
• Passive and active chip components
• Mechanical components

Bare Die H44 Accessories : Covers

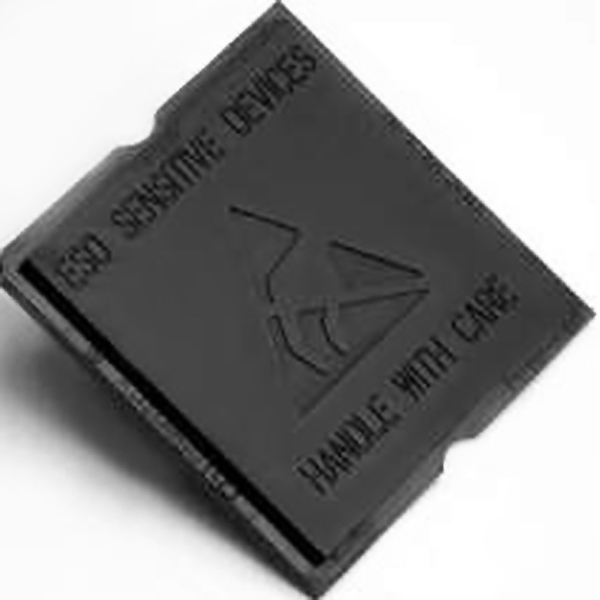

Tray covers in various standard materials are shown below. The following ordering policies apply:

• Minimum order quantity 200 pieces; thereafter in quantities of 50 pieces.
• STAT-PRO^® 150 covers and trays are not recommended for use with devices less than .012"
• STAT-PRO^® 150 material covers are recommended for use only with STAT-PRO^® 150 material trays.
